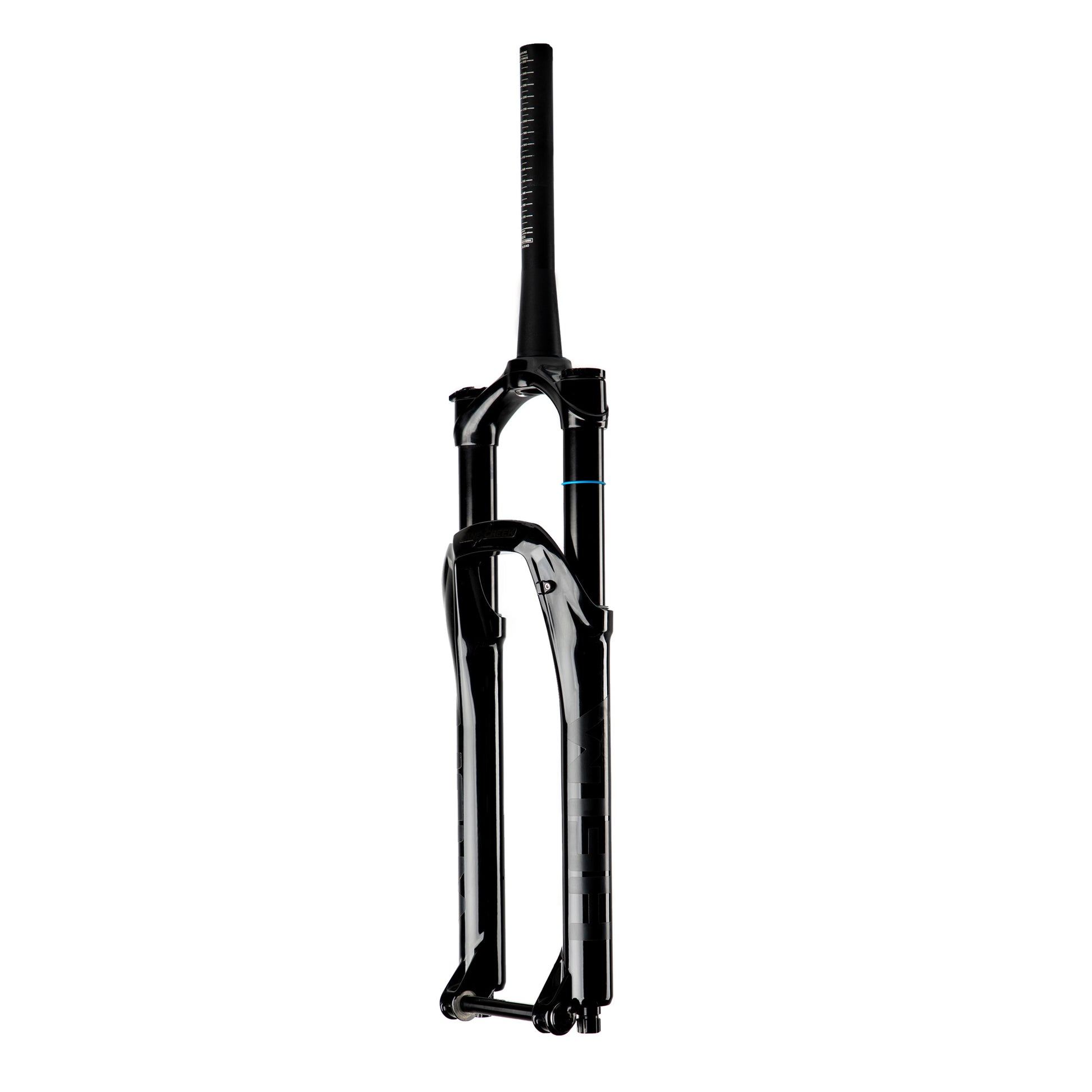

Cane Creek Helm MKII Air 29 Suspension Fork - 29" 160 mm 15 x 110 mm 44 mm Offset Gloss BLK

Cane Creek Helm MKII Air 29 Suspension Fork - 29" 160 mm 15 x 110 mm 44 mm Offset Gloss BLK

In Stock
Retail Price $1,099.99
Shipping calculated at checkout.

Product Features

Cane Creek Helm MKII Air 29 Suspension Fork - 29" 160 mm 15 x 110 mm 44 mm Offset Gloss Black. The Cane Creek Helm MKII Air Suspension Fork features an upgraded damper design for increased support and control and a redesigned air spring that allows for increased air volume for better traction and suppleness.
  • Compression and midvalve circuit offer increased support and control
  • SKF oil seal head cartridge and wiper seals are low friction
  • The redesigned air spring offers increased air volume for better traction and suppleness
  • The threadless air seal head allows for easier travel change
  • Damping features include: high speed compression low speed compression and low speed rebound
  • Adjustment options include: high speed compression (10 positions) low speed compression (17 positions) Low speed rebound (10 positions) independent positive air spring independent negative air spring and an indexed travel system (8 positions)
  • Double-Air spring system: high volume positive and negative air springs
  • "D-Loc" 15mm bolt-on thru axle
    • TECH SPECS
    Steerer Type Tapered
    Brake Type Post Mount 180
    Negative Spring Air
    Travel (mm) 160
    Offset 44
    Axle to Crown Length 573
    Front Axle 15mm Thru x 110mm
    Maximum Tire Width 65
    S.H.I.S. Stem Clamp Diameter 28.6
    Color Gloss Black
    Crown Race 40
    Weight 2080
    Wheel Size 29"
    External Adjustments High Speed Compression Damping
    External Adjustments Low Speed Compression Damping
    External Adjustments Rebound Damping
    Defined Color Black
    Positive Spring Air
    Stanchion Diameter 35
    Steerer Tube Length (mm) 265
